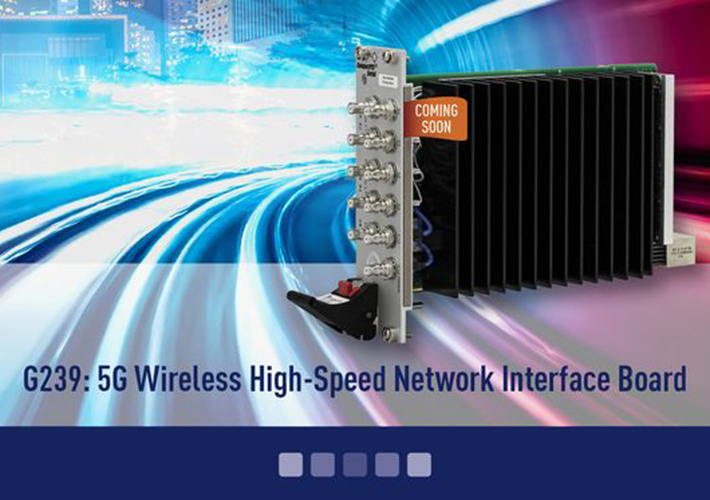

Designed for communication in embedded and harsh environments like rail, the new G239 is a rugged CompactPCI Serial carrier board that provides 5G mobile communication features to 19” systems.
Together with a powerful CPU, the G239 features various application possibilities, such as Internet-on-board, general back-office communication, live CCTV to control centers or predictive maintenance. It is designed for -40 °C to +85 °C operating temperature.

To use the wireless functionality, the interface board has three slots: two M.2 slots for 5G and one PCI Express Mini Card slot for WLAN. For 5G mobile communication the board is equipped with eight QLS antenna connectors (four connectors for each M.2 card) as well as up to three QLS antenna connectors for WLAN functionality. Additionally, a high-precision GNSS receiver is available for track accurate locating, as an example.

In the train communication system architecture, the G239 is typically located at the front end where it communicates directly with a cellular network. It features eight microSIM card slots to, e.g., save roaming costs when operating trains across borders, have as much data volume available as possible (by switching to the next SIM card when the volume is used up) or to optimize the connection by choosing the provider with the best network coverage in the region the train is passing.

• Remote control of modems
In addition to the hardware, a user-friendly software tool is included for interacting with the interface board. The user is thereby able to remotely control which microSIM cards are connected to the modems and can remote power reset each modem.

Based on the CompactPCI Serial standard, the board is future-proof with high-speed serial interfaces.

• Suited for mobility applications
The G239 is designed for -40 °C to +85 °C operating temperature and comes with conformal coating for a reliable operation in harsh and mobile environments. Additional long-term availability of the devices ensures an extended product life and is future-proof.

• About duagon
Your leading global partner for reliable, sophisticated embedded products used in regulated critical applications
duagon, a fast-growing technology company with headquarters in Switzerland, is a leading supplier of communication, computing, and control technology as well as project planning and engineering services for system-critical applications for the rail and medical technology markets. The superior software and hardware IP create innovative, highly reliable, and safe products, enabling customers to shape and realize their technology roadmap. Moreover, customers benefit from a shortened time to market and optimal cost of ownership.

As the leading independent supplier duagon designs and manufactures embedded products enabling onboard and wayside rail applications including real-time train communication, control and monitor train sub-systems, onboard and wayside signalling systems, and auxiliary systems for instance passenger information or entertainment systems. duagon's modular, customizable and secure systems are complemented by engineering services and high-quality application software support to provide the broadest range of train-borne communication protocols and key features like cyber security, virtualization and safe computing.

For the medical technology market, duagon develops and manufactures reliable, compact and long-term available Computer-on-Modules, carrier boards, and integrated electrical sub-systems including the required software adaptions. The core competencies include power-optimized designs, high-performance embedded computing platforms, and highly compact modules for use in applications such as patient monitoring, surgical robots, ventilators, and medical imaging.

duagon’s main development and production facilities are located in Dietikon, Switzerland and Nuremberg, Germany. Through a global sales and support organization with offices in Australia, China, Germany, France, India, Spain, Switzerland and USA, duagon offers its customers instant and competent services worldwide. duagon employs more than 650 workers across eight countries, with about 320 engineers for product development, services and support.
